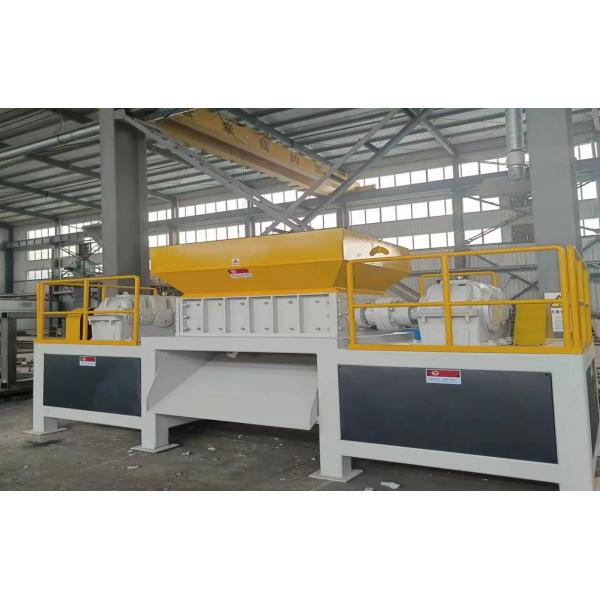

    380V 50HZ Auxiliary Machine Heavy Duty Shredder 1200 With 400 X 40 Rotary Blade

    Ask Lasest Price
    Brand Name : Huayu
    Model Number : HYBM-Shredder 1200
    Certification : CE,TUV,ISO9001,SGS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 40sets/year
    Delivery Time : 2months
    • Product Details
    • Company Profile

    380V 50HZ Auxiliary Machine Heavy Duty Shredder 1200 With 400 X 40 Rotary Blade

    Parameter Table for Shredder -1200 Heavy Duty

    380V 50HZ Auxiliary Machine Heavy Duty Shredder 1200 With 400 X 40 Rotary Blade


    旋转刀棍规格(直径X厚度)

    Rotary blade specification (diameter X thickness)


    400MMX40MM

    旋转刀轴转速

    Rotating cutter shaft speed

    According to material

    动刀具数量

    Number of moving knife

    30片

    主轴规格数量

    Main spindle specification and quantity

    L1800MM D200

    减速机规格数量

    Specification and quantity of reducer

    ZSY Hard tooth surface 750*2

    电机规格数量

    Motor specification and quantity

    55KW motor*2

    电源 Power


    three-phase 380V 50HZ

    进料斗规格尺寸

    Feed hopper specifications and dimensions MM

    1200MMX800MM

    外形尺寸

    Overall dimensions MM

    L5000 W2400 H2500

    主箱体规格

    Main box specifications MM

    端板40 侧板20

    End plate 40 Side plate 20

    主机架规格

    Main frame specifications MM

    150X150方钢

    150X150 square steel

    配电柜

    Distribution cabinet

    星三角降压启动柜(带反正传)

    Star delta voltage reduction starting cabinet (with anti forward transmission)
